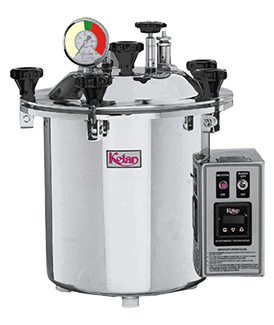

Portable Steam Autoclave (Semi Automatic)
Model : PA06 / PA12 / PA21 / PA21S
Features
- SS Seamless diepressed deep drawn chamber
- μp based PID controller with dual display for Temp. & Time
- R & D CENTERS
- Fully SS Construction
- Microprocessor Digital temperature controller cum timer
- Over heat Auto shut down at 1370 C
- Dual Display
- Unique Shape heater of outer SS tubing
- Food grade silicon rubber gasket for better durability
- Specially designed heater for optimum chamber usage
- Calibrated temperature cum pressure gauge
- Color coded monitoring gauge
- SS Safety Valve
- Vacuum Breaker to remove air packets in the chamber
Specification
| Model Capacity | PA06 | PA12 | PA21 | PA21S |
|---|---|---|---|---|
| Capacity | 6 Ltrs | 12 Ltrs | 21 Ltrs | 21 Ltrs |
| Order Code | KT1010 | KT1011 | KT1012 | KT1013 |
| Chamber Dimension | 200 x 200mm | 250 x 250mm | 300 x 300mm | 300 x 300mm |
| Construction | SS 304 | SS 304 | SS 304 | SS 304 |
| Power Consumption | 1 Kw | 1.5 Kw | 2 Kw | 2 Kw |
| Operating pressure | 1.2/2.1kg/cm2 | 1.2/2.1kg/cm2 | 1.2/2.1kg/cm2 | 1.2/2.1kg/cm2 |
| Operating Temperature | 1210 C/1340 C | 1210 C/1340 C | 1210 C/1340 C | 1210 C/1340 C |
| Sterilization time | 0-99 mins | 0-99 mins | 0-99 mins | 0-99 mins |
| Voltage | 230V | 230V | 230V | 230V |
| Gross Weight | 13 kg | 15 kg | 17 kg | 16 kg |
| Shipping Size (WxDxH)mm | 420x390x455 | 490x430x515 | 515x470x565 | 515x470x565 |
