Products

Table Top Front Loading Autoclave

Model : FL17B (CLASS B)

Features

  • Pre - Vacuum (for Class B only)
    Vacuum Turbo Clave is designed to get efficient pre-vacuum condition in order to achieve better sterilization result.
  • Post - Vacuum (for Class B only)
    Vacuum Turbo Clave post vacuum is designed in such a way to get better drying.

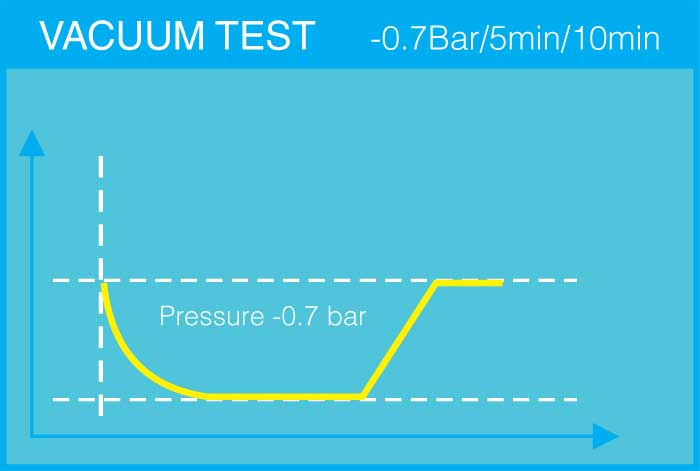

  • Air Leakage Test (for Class B only)
    Vacuum Turbo Clave has inbuilt program to confirm air leakage rate is as per requirement of EN13060:2004.

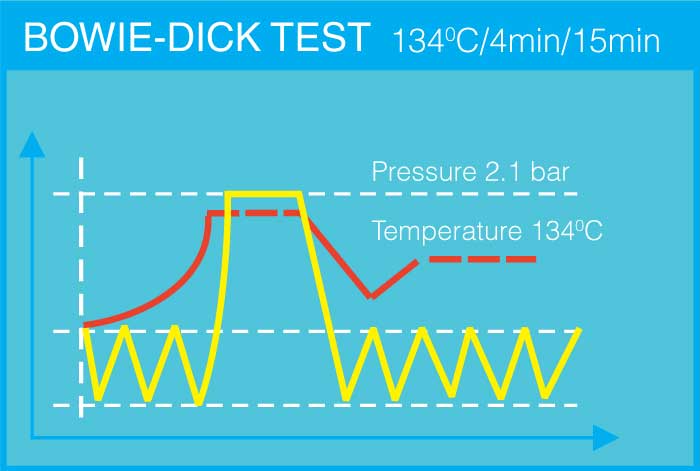

  • Bowie -Dick Test (for Class B only
    Vacuum Turbo Clave has inbuilt program for Bowie-Dick Test packs to determine performance efficiency as per requirement of EN13060:2004.
  • Process Challenge Device Test (for Class B only)
    Vacuum Turbo Clave also passed Process Challenge Device Test for hollow loads according to requirement of EN13060:2004.
  • Recorder Printer (for Class B only)
    Vacuum Turbo Clave can print out all parameters viz. sterilization pressure, sterilization temperature, sterilization time and dry time etc, with year / month / day / hour / Error Messages, Cycle time, various phases etc.

Mode Select

  • Package programs to sterilize packed articles sterilization temperature : 134°C, sterilization time : 4 minutes & dry time : 15 minutes.

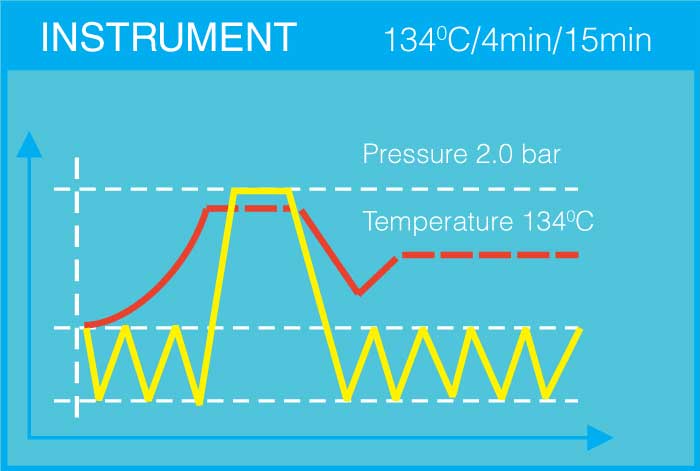

  • Instrument programs to sterilize metallic devices sterilization temperature : 134°C, sterilization time : 4 minutes & dry time : 15 minutes.

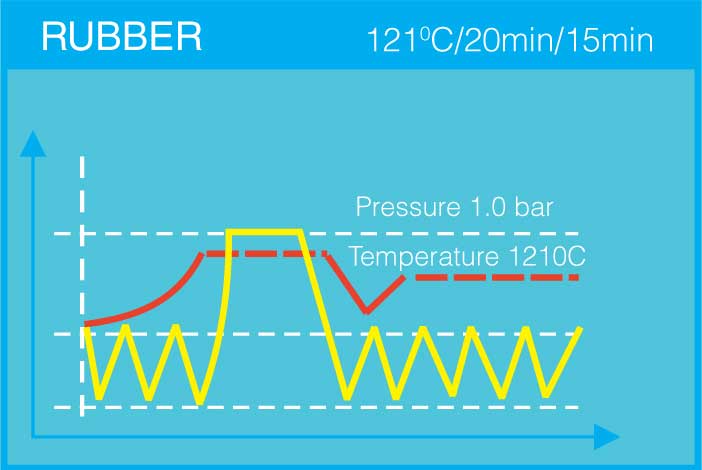

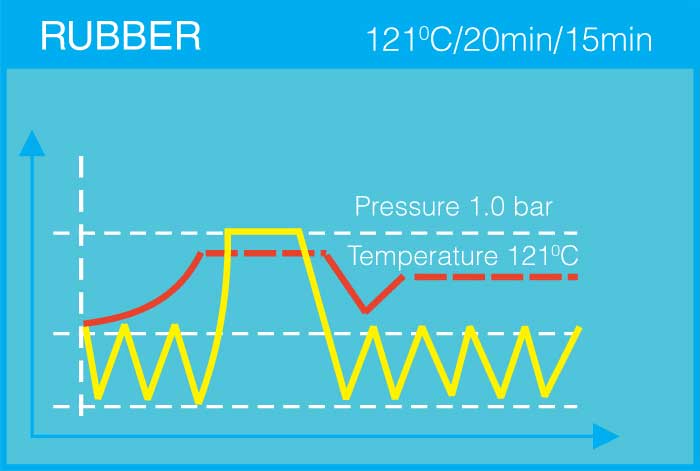

  • Rubber programs to sterilize rubber & plastic sterilization temperature : 121°C, sterilization time : 20 minutes & dry time : 15 minutes

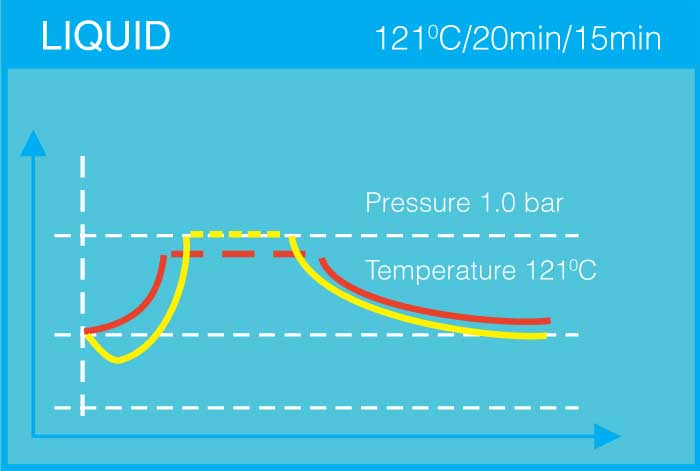

  • Liquid programs to sterilize liquid sterilization temperature : 121°C, sterilization time : 20 minutes & dry time : 15 minutes.

Manual Program

Manual program as per user requirements program can set pre vacuum, post vacuum sterilization temperature : 121°C~134°C, sterilization time : 1~60 minutes, dry time : 1~60 minutes.


Specification

Model FL17-B FL17-N
Dimension 525mm(W)x420mm(H)x640mm(D) 525mm(W)x420mm(H)x640mm(D)
Chamber size 225mm Dia x430mm Depth 225mm Dia x430mm Depth
Type Cylindrical Cylindrical
Capacity 17 Litre 17 Litre
Reservoir Capacity 3 Litre 3 Litre
Loading Tray 3 Nos. 150mmx380mmx14mm 3 Nos. 150mmx380mmx14mm
Source of Power 220V 50/60Hz, 15A 220V 50/60Hz, 15A
Power Consumption 1800 W 1800 W
Temperature Range 121°C (1.1bar)-134°C (2.1bar) 121OC (1.1bar)-134°C (2.1bar)
Digital Pressure Display Yes -
Printer Provided -
Dry System Vacuum Heat Drying Heat Drying
Control System Automatic Micro Processor Based Automatic Micro Processor Based
Display Type LED Display LED Display
Net Weight 45.0kg 39.0kg
Ordering Code Liters Class N Class B
Dental 17 KT4512 KT4511
Opthal 17 KT4514 KT4513
Orthopedic 17 KT4516 KT4515
General 17 KT4518 KT4517
